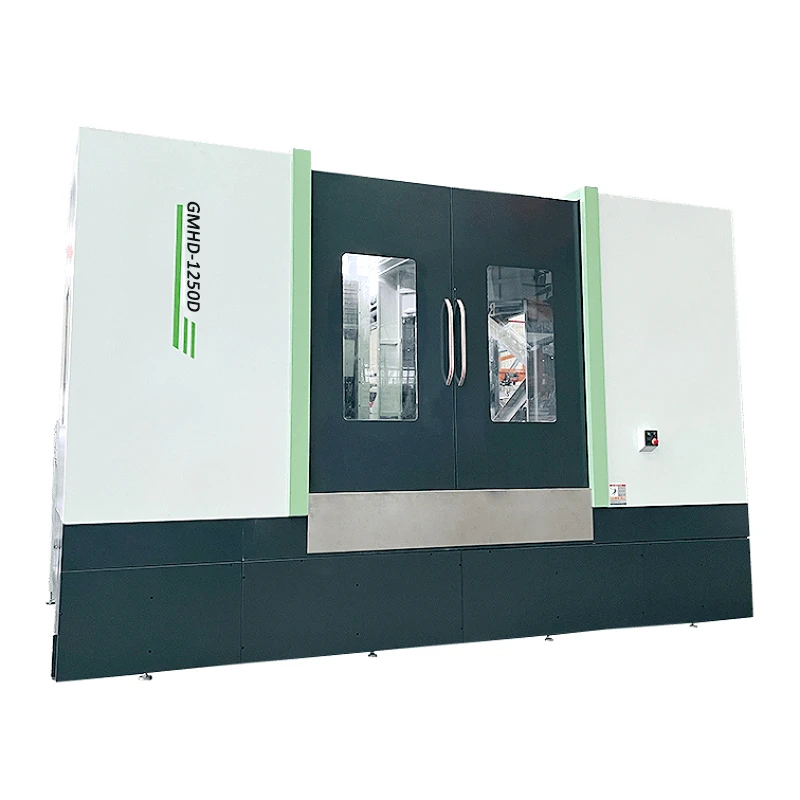

Great Magtech (Xiamen) Electric Co., Ltd yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm siab -ceev kab rov tav machining center gmhd-1250d nyob rau hauv Suav teb. Peb sov siab txais tos koj mus yuav cov khoom zoo siab kab rov tav machining chaw gmhd-1250d los ntawm peb lub hoobkas. Tiv tauj peb kom paub meej ntxiv.
Kab rov tav Machining Center Description
Kab rov tav machining chaw yog ntau yam thiab siv tau zoo tshuab tsim rau siab - precision machining ntawm loj thiab complex workpieces. Nws nta kab rov tav spindle orientation, uas tso cai rau kom zoo dua nti tshem tawm thiab txhim kho cov cuab yeej siv tau. Nruab nrog kev tswj hwm qib siab, lub tshuab no tuaj yeem ua ntau yam haujlwm, suav nrog kev milling, drilling, thiab tapping, nrog cov neeg siab thiab ceev. Kab rov tav machining chaw yog qhov zoo tagnrho rau kev lag luam uas xav tau cov nqi ntau lawm thiab nruj kam rau ua, muab kev ruaj ntseg thiab rigidity rau precision machining cov hauj lwm. Nws cov qauv tsim muaj zog txhawb nqa ob qho tib si - thooj thiab batch ntau lawm, ua rau nws muaj txiaj ntsig zoo hauv kev tsim khoom.
Cov yam ntxwv zoo
| Tshuab txaj, Kem Cov kem nta ib daim duab peb sab sib npaug nrog ntau- txheej stiffeners los txhim kho kev ruaj ntseg ntawm lub tshuab txaj. Lub tshuab txaj muaj qhov zoo T qauv nrog rau kauj ruam X-axis layout thiab ncua kev taw qhia ncua rau kev txhawb nqa nruj. Siv siab - lub zog Rexroth cov menyuam cov lus qhia rau kev thauj khoom zoo tshaj - cov kabmob muaj peev xwm thiab ruaj khov precision. |
| Spindle Nruab nrog 6 siab -rigidity bearings. Nta ntawm Taiwan thawj BBT50 spindle nrog 190mm txheej kab. Nruab nrog spindle cua tshuab los tiv thaiv cov khib nyiab nkag. Xws li lub nplhaib tshuaj tsuag system los txhim kho kev ua haujlwm zoo. Los ntawm tus qauv nrog FANUC siab -torque ilP30/8000 lub cev muaj zog rau kev txhim kho hnyav- txiav muaj peev xwm. |
| Optical Linear Nplai Yeem Heidenhain, Fagor Optical Linear Scales, raug ± 5um, los xyuas kom meej cov cuab yeej siv qhov tseeb. |
| Ob chav pauv rooj / plaub -axis turntable Paub txog kev sib pauv workpiece thiab txhim kho kev ua haujlwm zoo; Lub workpiece muab tso rau sab nraud kom yooj yim clamping; High rigidity alloy turbine, hnav-resistant, siab positioning raug; Heavy locking, txo deformation, resistant rau hnyav txiav. |
| Tool magazine Siv Taiwan cov khoom siv hloov pauv hloov pauv hloov pauv hloov pauv, cov cuab yeej hloov pauv nrawm nrawm thiab ruaj khov. |
HMC Tshuab Tus yam ntxwv
| Qauv | GMHD-1250D | ||
| Kawm paub | Specifications | Chav tsev | |
| Mus ncig | X / Y / Z axis | mm | 2000/1350/1350 |
Spindle Nose rau Worktable | mm | 50-1400 | |
Spindle Center rau Kem | mm | 350-1700 | |
Peb -Axis Guideway | Roller Linear Guideway | ||
| Lub rooj ua haujlwm | Worktable Loj (L * W) | mm | 1250*1250 |
Qhov siab tshaj plaws Load | t | 5 | |
Rooj Ntsia Hlau | mm | ||
T-Qhov | mm | 7-22x160 | |
Tus naj npawb ntawm Pallet | pcs | 2 | |
Table Indexing | 1℃/ 0.001 degree | ||
Txoj kab uas hla tshaj plaws | mm | φ2200 | |
| Spindle | Spindle Taper | hom | BBT-50 |
Spindle Ceev | rpm ua | 6000 | |
Spindle Drive Hom | Siv | ||
| Feedrate | Rapid Traverse (X/Y/Z) | m/min | 10/10/10 |
Txiav Feedrate (X / Y / Z) | m/min | 10 | |
| Tool Changer | Automatic Tool Changer | ARM Hom (Servo Drive) | |
Hom Tool Shank | hom | BT-50 | |
Tool Storage Capacity | Daim | 24 | |
Max. Tool Diameter (Nyob ib sab) | mm | 125 | |
Max. Tool Diameter (Empty) | mm | 250 | |
Max. Tool Length | mm | 500 | |
Max. Tool Qhov hnyav | kg | 25 | |
Tool Hloov Sijhawm | sec | 4.9 | |
| Lub cev muaj zog | Spindle Tsav | kws | 15/18.5 |
Peb -Axis Servo Tsav | kws | 3.0/3.0/3.0 | |
| Yuav tsum muaj hwj chim | Xav tau lub zog | kva | 45 |
Kev xav tau cua txias | kg/cm² | 6^8 | |
| Lwm tus | Sab nraud Dimensions (L * W * H) | mm | 10308*6095*4100 |
Qhov hnyav tag nrho | t | 31 | |
Standard Accessories
Arm Type Tool Changer | Rigid Tapping | Daul LED Ua Haujlwm Teeb | Spindle Nose Cua Tshuab |
Tsis Siv Neeg Lubricating System | Thaum tshav kub kub Exchanger rau Electric txee | LED 3 Xim Ceeb Toom Teeb | Leveling Bolts thiab Pads |
Fully Enclosure Guard | Coolant Tank & Chip Tais | M30 Auto Off |
Kev xaiv
Optical Linear Scale | Tool Breakage System | Roj Hmab Collector | Rotary Rooj |
CTS | Chain Hom Chip Conveyor System | Roj Skimmer | Workpiece & Tool Probe |
