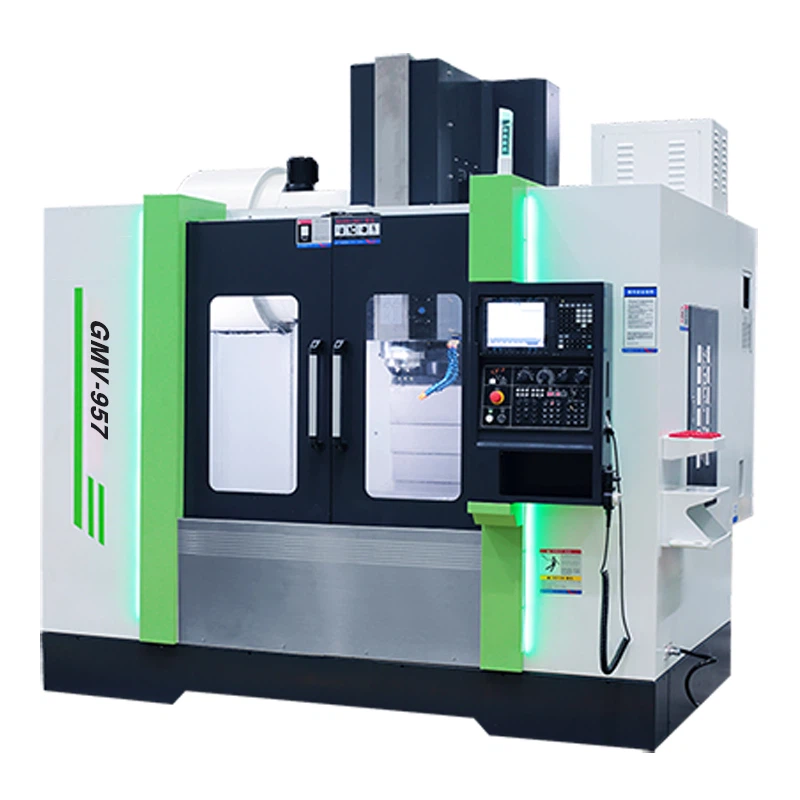

Great Magtech (Xiamen) Electric Co., Ltd yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm cnc ntsug milling chaw gmv-957 nyob rau hauv Suav teb. Peb sov siab txais tos koj mus yuav cov khoom zoo cnc ntsug milling chaw gmv-957 los ntawm peb lub hoobkas. Tiv tauj peb kom paub meej ntxiv.
Feature
CNC milling tshuab yog cov cuab yeej siv ntau yam khoom siv uas tuaj yeem ua cov txheej txheem ntau yam grooves, toothed qhov chaw, thiab qhov chaw ntawm lub cev rotating, puab qhov, thiab ua haujlwm txiav. Thaum lub sij hawm milling txheej txheem, lub workpiece feem ntau yog tsau rau ntawm lub workbench los yog ib tug tshwj xeeb indexing ntaus ntawv. Kev sib hloov ntawm lub milling cutter ua hauj lwm raws li lub ntsiab txiav txiav, thaum lub zog ntawm lub workbench los yog lub taub hau milling muab cov khoom tsim nyog los tsim qhov yuav tsum tau machining nto. Lub tshuab milling yog tus cwj pwm los ntawm kev siv ntau- hniav txiav, uas ua rau nws cov khoom siv ntau dua. Nyob rau hauv luv luv, lub tshuab milling yog lub tshuab cuab yeej uas tuaj yeem ua milling, drilling, tho txawv thiab lwm yam kev ua haujlwm. Nws yog dav siv nyob rau hauv ntau industries xws li hardware accessories, mechanical parts manufacturing, pwm tsim, thiab automated manipulators.
Tshuab txiav Performance
Nto Milling | Hlau 45 # | Drilling qhov | Hlau 45 # | Tapping | Hlau 45 # |
Txiav qhov tob |
| Cutter txoj kab uas hla |
| Tapping |
|
Cutter | Ø 125 hli * 5T | Cutter | Ø 60 hli * 2T | Cutter | M24*3P |
Spindle ceev | 1000 rpm | Spindle ceev | 1200 rpm | Spindle ceev | 150rpm ib |
Pub | F600 | Pub | F100 | Pub | F450 |
Dav | 56mm ua | Dav | 60 hli | Dav | 40 mm |
CNC Machining Equipment VMC Cov yam ntxwv
1. Lub tshuab CNC no tau ua kom zoo thiab tsim los ntawm lub computer- pab tsim thiab tsim khoom (CAD/CAM). Nws siv lub txaj dav thiab kab qauv, yog qhov tseeb -casted siv high- zoo Meehanite resin xuab zeb tshuab, thiab tau dhau los ua ntau yam kev kho kev laus, nrog rau kev ua haujlwm poob siab zoo thiab tag nrho rigidity.
2. Qhov tshwj xeeb ntawm BBT40 muaj ib txoj kab uas hla ntawm 150mm, lub qhov ntswg luv luv spindle nrog siab rigidity thiab 10000rpm, nruab nrog 5 bearings, spindle coolant nozzle raws li tus qauv, thiab ib qho hluav taws xob spindle ntawm HSK-63 qauv tuaj yeem xaiv raws li xav tau.
3. Nruab nrog loj- txhuas precision pob ntsia hlau thiab precision bevel pob bearing preload li kom ntseeg tau tias pub raug thiab muaj zog load-cov kabmob muaj peev xwm.
4. Cov kev sib cuag - hom duab plaub qhia kev sib txhuam khub, nrog Turcite-B hnav- daim hlau tiv taus ntawm lub vaj huam sib luag, muaj kev hnav zoo heev tom qab txhuam zoo.
5. Lub tshuab cuab yeej yog nruab nrog qhov ntsuas qhov muag. Cov neeg siv khoom tuaj yeem xaiv Heidenhain lossis Fagor hom kho qhov muag teev nrog qhov tseeb ntawm ± 5 microns, kom ntseeg tau qhov tseeb ntawm lub tshuab.
6. Cov lus qhia ntawm Japanese THK lossis German Rexroth hom yog siv, thiab qhov dav ntawm cov lus qhia no tuaj yeem ncav cuag li 45 hli.
7. Kem ob - txheej caj npab qauv, zoo rigidity.
8. Cov cuab yeej siv tshuab yog nruab nrog lub tshuab ntsuas cua raws li tus qauv, uas yuav pab txhim kho kev ruaj ntseg ntawm cov txheej txheem ua haujlwm.
Parameters
| Qauv | HWV-957 | ||
| Kawm paub | Specifications | Chav tsev | |
| Mus ncig | X/Y/Zaxis | mm | 900/570/680 |
Spindle Nose rau Worktable | mm | 120-800 | |
Spindle Center rau Kem | mm | 610 | |
Peb -Axis Guideway | / | Roller Linear Guideway | |
| Lub rooj ua haujlwm | Worktable Loj (L * W) | mm | 1020x570 |
Qhov siab tshaj plaws Load | kg | 1000 | |
T-Qhov | mm | 5-18x90 | |
| Spindle | Spindle taper | hom | BBT-40 |
Spindle ceev | rpm ua | 10000 | |
Spindle Drive Hom | / | Siv | |
| Feedrate | Rapid Traverse (X/Y/Z) | m/min | 30/30/30 |
Txiav Feedrate (X / Y / Z) | m/min | 10 | |
| Tool Changer | Automatic Tool Changer | / | ARM Hom |
Hom Tool Shank | hom | BT-40 | |
Tool Storage Capacity | Daim | 24 | |
Max. Tool Diameter (Nyob ib sab) | mm | 80 | |
Max. Tool Diameter (Empty) | mm | 120 | |
Max. Tool Length | mm | 300 | |
Max. Tool Qhov hnyav | kg | 7 | |
Tool Hloov Sijhawm | sec | 1.4 | |
| Lub cev muaj zog | Spindle Tsav | kws | 7.5/11 |
Peb -Axis Seixo Tsav | kws | 2.0/2.0/3.0 | |
| Yuav tsum muaj hwj chim | Xav tau lub zog | kva | 20 |
Kev xav tau cua txias | kg/cm² | 6^8 | |
| Lwm tus | Sab nraud Dimensions (L * W * H) | mm | 2640x2354x2575 |
Qhov hnyav tag nrho | t | 6.8 | |
Standard Accessories
Qhov rooj nyab xeeb | Rigid Tapping | Dual LED Ua Haujlwm Lub Teeb | Spindle Nose Cua Tshuab |
Tsis Siv Neeg Lubricating System | Thaum tshav kub kub Exchanger rau Electric txee | LED 3 Xim Ceeb Toom Teeb | Leveling Bolts thiab Pads |
Fully Enclosure Guard | Spindle Coolant Nozzles | Coolant Tank & Chip Tais | M30 Auto Off |
Cua phom | Coolant Phom | Tool Box | Phau Ntawv Qhia Txog Kev Kho thiab Kev Ua Haujlwm |
Kev xaiv
Optical Linear Scale | Coolant Phom | Roj Hmab Collector | 12000rpm DDS Spindle |
CTS | Tool Breakage System | Roj Skimmer | 15000rpm DDS Spindle |
Workpiece & Tool Probe | Chip Conveyor System | Rotary Rooj | HSK-63-18000 Built-In Moto |
