Great Magtech (Xiamen) Electric Co., Ltd yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg uas siab rigidity cnc gantry machining chaw gmmv-2013 nyob rau hauv Suav teb. Peb sov siab txais tos koj mus yuav cov khoom zoo siab rigidity cnc gantry machining center gmmv-2013 los ntawm peb lub hoobkas. Tiv tauj peb kom paub meej ntxiv.
Qhov siab -rigidity CNC gantry zeb no yog tsim los ua kom tau raws li qhov xav tau tshaj plaws hnyav - lub luag haujlwm txiav thiab siab - cov kev xav tau kev ua haujlwm zoo. Nws txais yuav lub gantry ncej qauv, ua ke nrog zoo heev rigidity thiab stability, los xyuas kom meej tias lub tshuab cuab yeej muaj peev xwm muab unparalleled machining raug thiab kev cia siab rau thaum ntsib loj los yog complex workpieces. Txawm nyob rau hauv lub teb ntawm aerospace, automotive manufacturing, pwm ua los yog hnyav machinery, qhov chaw machining no tuaj yeem ua rau nws ua tau zoo heev.

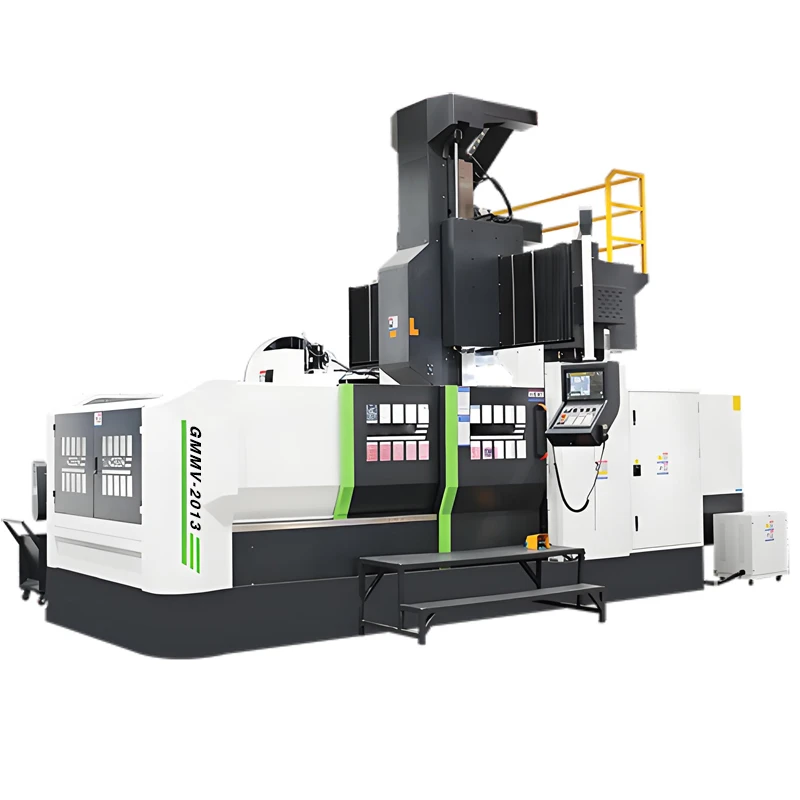

High Rigidity CNC Gantry Machining Center GMMV-2013 Khoom Taw Qhia
1. Vertical and Horizontal Tool Magazine: Lub tshuab nta lub cuab yeej magazine uas yog tsim los tuav cov cuab yeej nyob rau hauv ob qho tib si ntsug thiab kab rov tav orientations, ua kom yooj yim rau kev tswj cov cuab yeej thiab kev hloov cov cuab yeej ceev.
2. Spindle: Cov ntxaiv yog BBT50- © 200 hom rigidity siab, nruab nrog rau 6 qhov loj steel pob bearings. Qhov kev teeb tsa no muab cov peev txheej zoo tshaj plaws, ua kom muaj kev ua tau zoo thaum xav tau kev ua haujlwm machining.
3. Tsib -Axis Linkage Ob Chav Viav Vias Lub Taub Hau: Lub taub hau milling no tau nruab nrog lub AC axis torque lub cev muaj zog thiab lub tshuab hluav taws xob, muab kev tswj xyuas meej thiab siab - ua haujlwm ceev. Nws nta ib rab diav rawg- zoo li tus qauv sib xyaw kom ruaj khov. Lub AC axis yog tsim los nrog lub cev muaj zog lub cev muaj zog thiab lub zog tuav hydraulic, uas ua kom muaj siab - txiav ceev thiab tswj kev ua haujlwm siab rau precision machining.
Parameters
| Qauv | GMMV-2013 | ||
| Kawm paub | Specifications | Chav tsev | |
| Mus ncig | X-Axis | mm | 2000 |
| Y-Axis | mm | 2100 | |
| Z-Axis | mm | 800 | |
| Spindle Nose rau Worktable | mm | 190-990 | |
| Peb -Axis Guideway | X/Y/Z Heavy Load Roller Linear Guideway | ||
| Qhov Rooj Dav | 1300 | ||
| Hom Ram | T-Tib | ||
| Lub rooj ua haujlwm | Worktable Loj (L * W) | mm | 2000*1000 |
| Qhov siab tshaj plaws Load | t | 3 | |
| T-Qhov | mm | 7-22*140 | |
| Spindle | Spindle Hom | hom | BBT-50 |
| Spindle RPM | rpm ua | 6000 | |
| Spindle Drive Hom | Belt (DDS/Geared) | ||
| Feedrate | Rapid Traverse (X/Y/Z) | m/min | 15/15/15 |
| Txiav Feedrate (X / Y / Z) | m/min | 15 | |
| Tool Changer | ATC | 24 (Kev xaiv: 40/60) | |
| Lub cev muaj zog | Spindle Tsav | KW | 15/18.5 (143-236 Nm) |
| Peb -Axis Servo Tsav | KW | 3/3/3 (36 Nm) | |
| Yuav tsum muaj hwj chim | Xav tau lub zog | kva | 45 |
| Kev xav tau cua txias | kg/cm² | 6^8 | |
| Lwm tus | Sab nraud Dimensions (L * W * H) | mm | 7600*3650*3550 |
| Qhov hnyav tag nrho | t | 18 | |
Standard Accessories
| Siab -Rigidity Gantry Ncej | Advanced CNC System | LED 3 Xim Ceeb Toom Teeb |
| Siab -Power Spindle | Automatic Tool Change System (ATC) | Chain Hom Chip Conveyor thiab Cart |
| Siab -Precision Ball Screw Thiab Linear Guide | Txias Thiab Lubrication System | Ib nrab-Cov neeg saib xyuas |
Kev xaiv
| Optical Linear Scale | Tool Breakage System | Roj Mist System | Cua txias |
| CTS | Chip Conveyor System | Roj Skimmer | Auto Parts Probe Measuring System |
| 40 T TSI | Rotary Rooj | 90℃phau ntawv Milling taub hau | 90℃Nws pib Milling taub hau nrog AHC |
